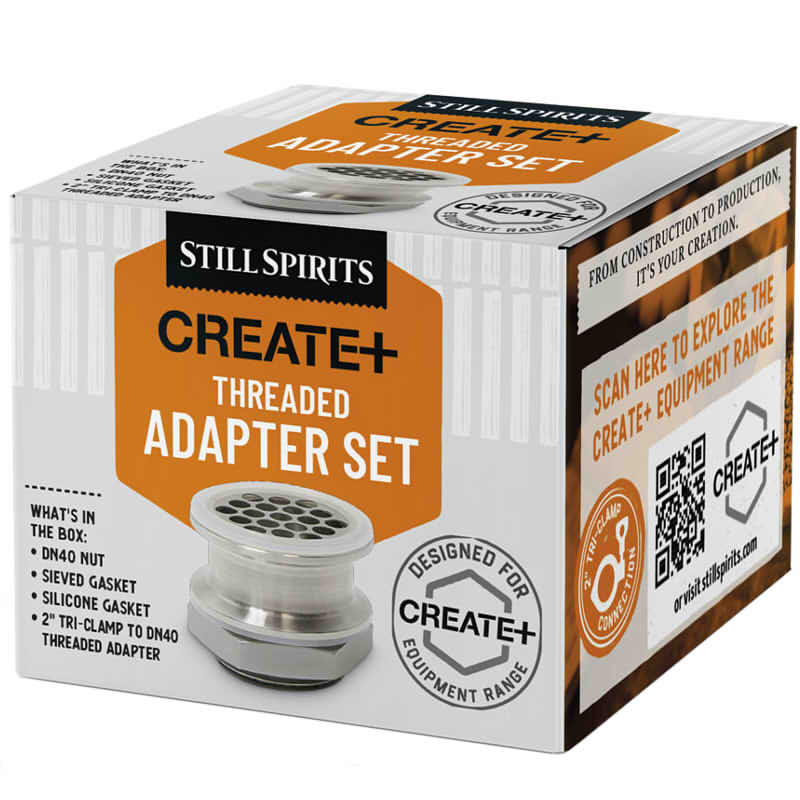

Retail box of Still Spirits Create+ Threaded Adapter Set showing included components and tri-clamp compatibility
  • Retail box of Still Spirits Create+ Threaded Adapter Set showing included components and tri-clamp compatibility
  • Still Spirits Create+ Threaded Adapter – DN40 to 2 inch tri-clamp stainless fitting
  • Diagram of Still Spirits Create+ Threaded Adapter Set with labeled parts including DN40 nut, sieved gasket, and silicone seal

Still Spirits Create+ Threaded Adapter – DN40 to 2" Tri-Clamp

Still Spirits Create+ Threaded Adapter Set – DN40 to 2" Tri-Clamp

The Still Spirits Create+ Threaded Adapter Set lets you connect a DN40 (or 1½" BSPP) threaded outlet to a standard 2" tri-clamp system.

It’s designed for distillers looking to upgrade or adapt their Still Spirits Alembic or T500 setups to use 2" tri-clamp accessories — no need to replace your entire system.

If you’re working with modular distilling gear, this adapter bridges the gap between older threaded connections and the more modern, versatile tri-clamp format.

It’s made from high-grade stainless steel with heat-resistant silicone seals to handle high-temp distilling conditions safely and reliably.


What It’s For

This adapter set is ideal if you want to:

  • Upgrade a Still Spirits Alembic or T500 setup with tri-clamp components
  • Build a more modular distilling system using 2" tri-clamp fittings
  • Connect swan necks, condensers, or other custom rigs

Key Features

  • Converts DN40 (1½" BSPP) threaded fitting to 2" tri-clamp
  • Compatible with most 2" tri-clamp accessories
  • 304 stainless steel construction
  • High-temp, food grade silicone gaskets included
  • Simple, secure clamp fitting – no tools needed for assembly

What’s Included

  • DN40 Nut
  • Sieved Gasket
  • Silicone Gasket
  • 2" Tri-Clamp to DN40 Threaded Adapter

Specifications

  • Dimensions: 80mm x 80mm x 65mm (packaged)
  • Weight: Approx. 400g
  • Materials: 304 Stainless Steel, Food-Grade Silicone

Usage Notes

This adapter is best suited for small to medium-sized setups with balanced columns and condensers.

It’s rated for use with a total column height up to 1.1 m (3.6 ft) and total weight up to 11 kg (24 lbs), including off-centre components up to 2 kg and offset up to 160 mm (6").

Compatible With: Still Spirits Alembic Copper Condensers sold from 2019 onward, and the Still Spirits 25 L Boiler lid.


Legal Disclaimer

Please note: in some countries, distilling alcohol or owning distillation equipment may require a permit or be prohibited. Check your local regulations before purchase or use.
