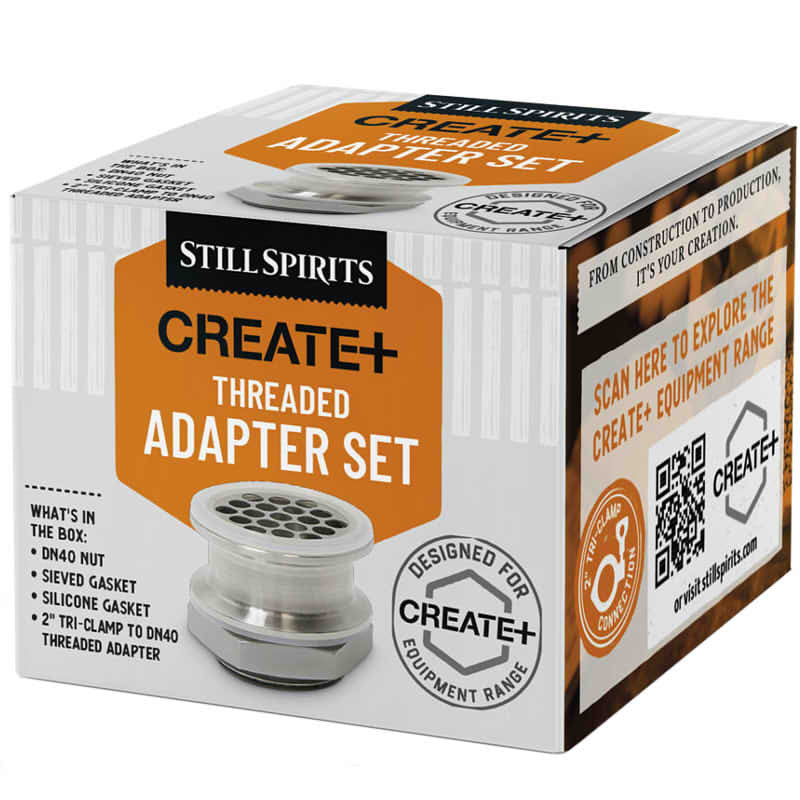

Still Spirits Create+ Threaded Adapter – DN40 to 2" Tri-Clamp

Still Spirits Create+ Threaded Adapter Set – DN40 to 2" Tri-Clamp

The Still Spirits Create+ Threaded Adapter Set lets you connect a DN40 (or 1?" BSPP) threaded outlet to a standard 2" tri-clamp system.

It’s designed for distillers looking to upgrade or adapt their Still Spirits Alembic or T500 setups to use 2" tri-clamp accessories — no need to replace your entire system.

If you’re working with modular distilling gear, this adapter bridges the gap between older threaded connections and the more modern, versatile tri-clamp format.

It’s made from high-grade stainless steel with heat-resistant silicone seals to handle high-temp distilling conditions safely and reliably.

What It’s For

This adapter set is ideal if you want to:

• Upgrade a Still Spirits Alembic or T500 setup with tri-clamp components
• Build a more modular distilling system using 2" tri-clamp fittings
• Connect swan necks, condensers, or other custom rigs

Key Features

• Converts DN40 (1?" BSPP) threaded fitting to 2" tri-clamp
• Compatible with most 2" tri-clamp accessories
• 304 stainless steel construction
• High-temp, food grade silicone gaskets included
• Simple, secure clamp fitting – no tools needed for assembly

What’s Included

• DN40 Nut
• Sieved Gasket
• Silicone Gasket
• 2" Tri-Clamp to DN40 Threaded Adapter

Specifications

• Dimensions: 80mm x 80mm x 65mm (packaged)
• Weight: Approx. 400g
• Materials: 304 Stainless Steel, Food-Grade Silicone

Usage Notes

This adapter is best suited for small to medium-sized setups with balanced columns and condensers.

It’s rated for use with a total column height up to 1.1 m (3.6 ft) and total weight up to 11 kg (24 lbs), including off-centre components up to 2 kg and offset up to 160 mm (6").

Compatible With: Still Spirits Alembic Copper Condensers sold from 2019 onward, and the Still Spirits 25 L Boiler lid.

Legal Disclaimer

Please note: in some countries, distilling alcohol or owning distillation equipment may require a permit or be prohibited. Check your local regulations before purchase or use.
