Still Spirits VORTEX Air Cooled Condenser

Coming soon — expected February 2027. Availability is subject to supplier confirmation. Price to be confirmed.

Air cooling for your modular distilling setup

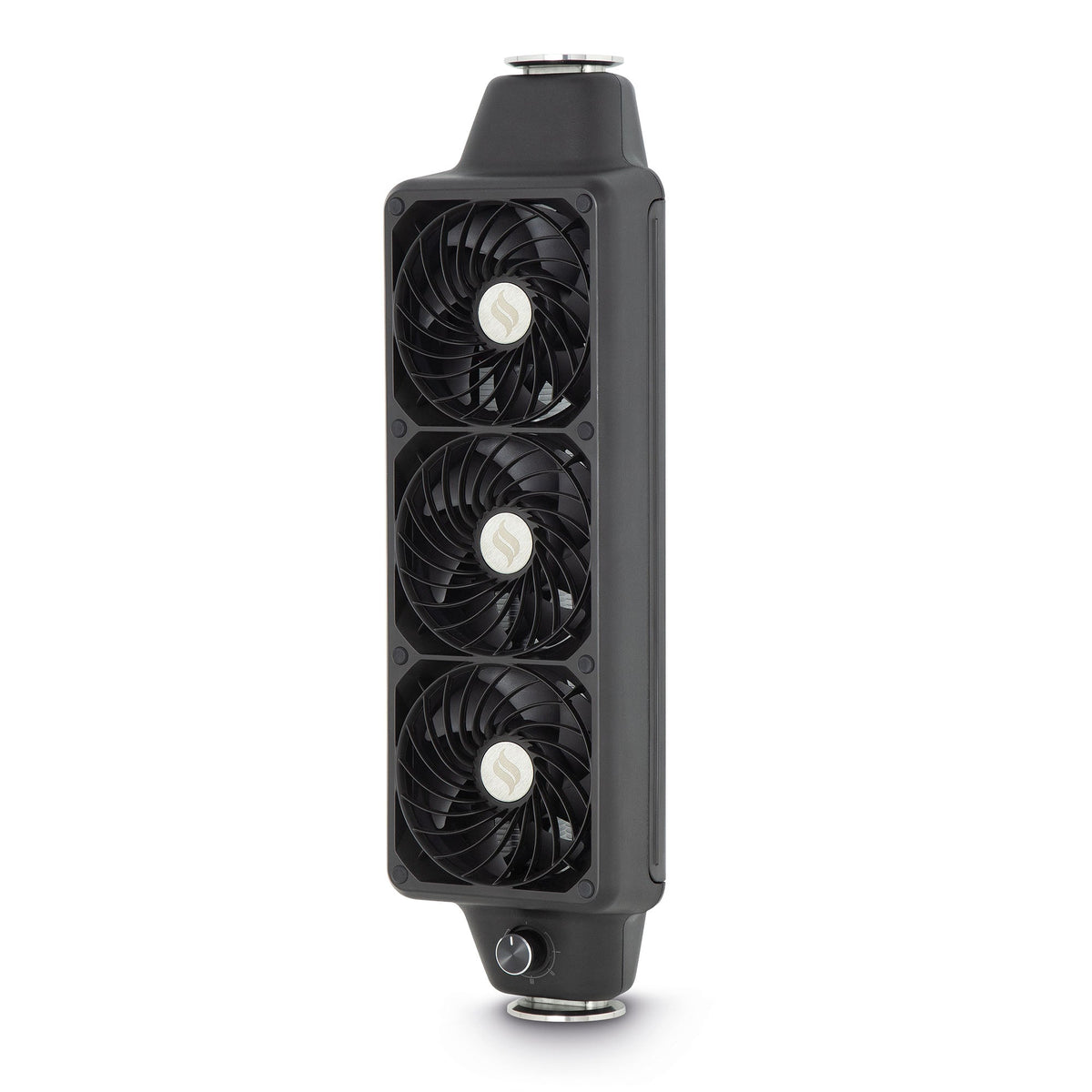

The Still Spirits VORTEX Air Cooled Condenser replaces a water-cooled product condenser or reflux condenser (dephlegmator) in compatible 2" tri-clamp systems. Forced-air cooling removes the need to supply cooling water to the component it replaces, giving you more flexibility over where to position your equipment.

Two internal stainless steel tubes carry vapour or liquid through aluminium cooling fins. Three integrated fans disperse the heat, while a control dial lets you adjust fan speed and cooling.

Key features

• Air-cooled condensing with no cooling-water connection to the module
• Adjustable fan speed for control over heat dissipation
• 2" tri-clamp connections for compatible modular setups
• Can serve as a product condenser or dephlegmator, depending on configuration
• Supplied with a universal power supply with UK plug option

What's included

• 1 × VORTEX Air Cooled Condenser module
• Universal power supply with NZ/AU, US/CA, UK and EU plug options
• Instruction booklet

Tri-clamps and gaskets are sold separately. Boiler, lid or dome and other modular components are not included.

Specifications

Compatibility and support

Designed for compatible 2" tri-clamp equipment and CREATE+ modular components. Check your boiler, lid or dome connection and the support requirements for your complete assembly before choosing components.

Still Spirits specifies a maximum assembly height of 1.1 m above its boiler lid or dome and a maximum total assembly weight of 11 kg, including up to 2 kg of off-centre weight offset by up to 160 mm. External support is recommended for assemblies outside these limits, a lyne arm extending away from the column, or any assembly that noticeably leans.

Common questions

Will one module make my whole still free of cooling water?

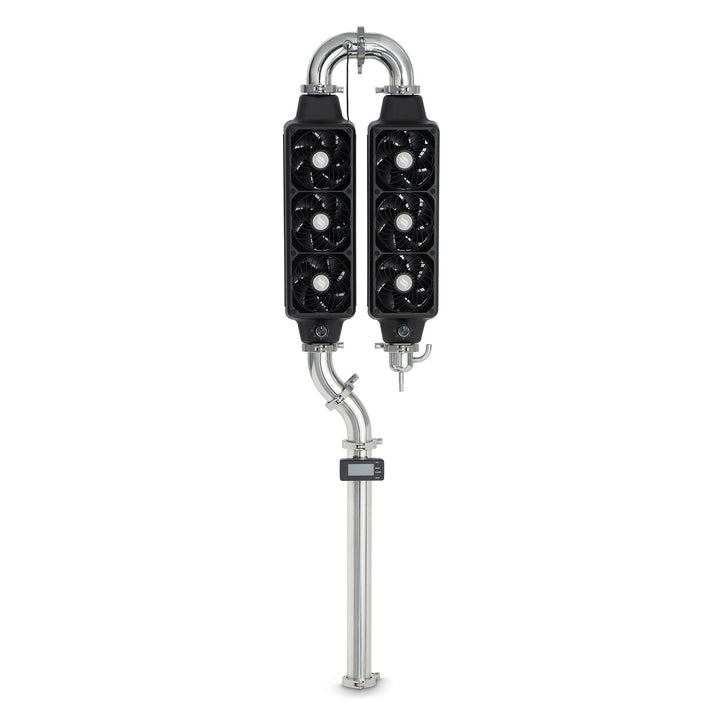

Only if every cooling function in your chosen setup is handled by air cooling. Replacing one condenser does not remove the water requirement of any water-cooled component left in the system. The VORTEX Reflux Equipment Kit uses two modules to cover both reflux and product cooling.

Will it fit an older threaded still?

The module uses 2" tri-clamp connections. Do not assume a direct fit to older threaded equipment; check which adapters and additional components your system requires.

Watch: VORTEX FAQs and tips

Still Spirits' engineer answers questions about the VORTEX range.

Watch VORTEX FAQs and tips on YouTube or see the VORTEX introduction.

Explore the VORTEX range

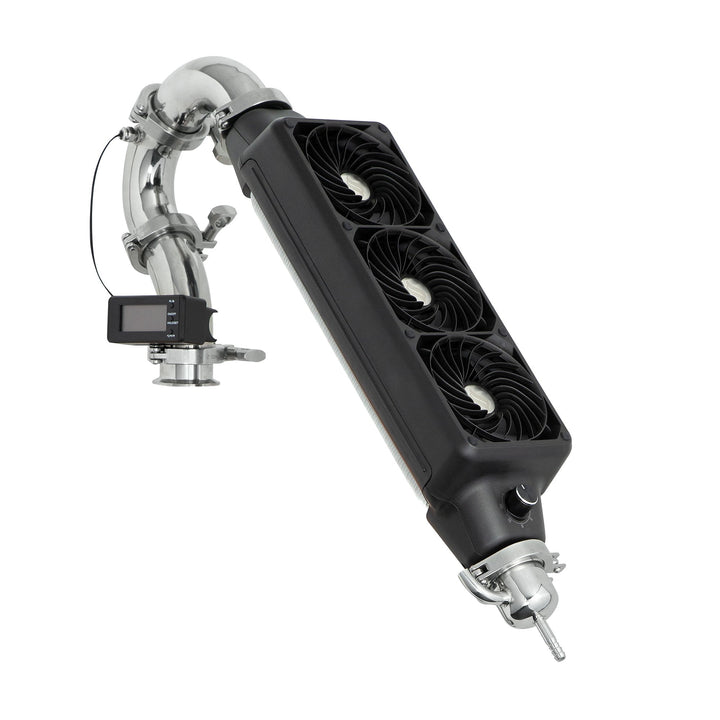

Choose the individual VORTEX condenser module, the VORTEX Reflux Equipment Kit or the VORTEX Alembic Equipment Kit. Browse more distilling equipment and supplies.
