Grainfather GC4 Glycol Chiller & GF30 Conical Fermenter Bundle

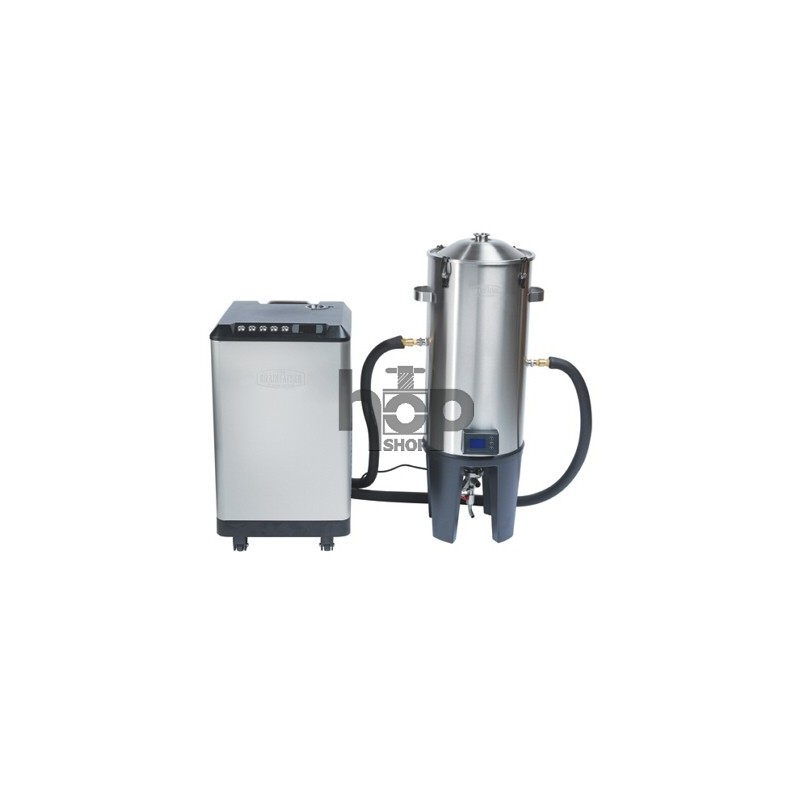

Grainfather Glycol Chiller (GC4) with Conical Fermenter

The Grainfather Glycol Chiller with Conical Fermenter is a brewing equipment system designed for homebrewers and small-scale breweries.

The Glycol Chiller provides cooling for the Conical Fermenter, allowing precise temperature control during fermentation.

The Glycol Chiller connects to the Conical Fermenter's hidden cooling sleeve, located between the stainless steel walls of the fermenter.

This cooling system enables the brewer to individually power and control the temperature of up to four Conical Fermenters, each with its own fermenting schedule.

Features of the Grainfather Fermenter

  • Double Walled: A stainless-steel, double-walled skin is filled with a thick layer of polyurethane foam for insulation. This keeps the wort at a constant and stable temperature with minimal influence from external environmental changes.
  • Integrated Gentle Heating: The 30W, 12V heating element, sits in the cavity of the fermenter between the outer body and cone. Unlike standard heating elements/sources that directly heat the liquid, this heat source is designed to heat the environment in between the walls of the fermenter, which in turn heats the liquid. The fermenter acts as an artificial environment which can be heated, meaning the temperature is raised in an even and controlled manner, which is much better for yeast.
  • Integrated Cooling Sleeve: Welded onto the inner wall of the fermenter, the stainless-steel cooling sleeve sits in between the two stainless-steel walls. When hooked up to the Glycol Chiller (sold separately) the cooling liquid travels through this sleeve, cooling the stainless steel, which then evenly cools the beer within the fermenter. As it’s concealed, there’s no cleaning or sanitising required - a true innovation for a fermenter of this scale.
  • Hassle-free Cleaning: The Grainfather GF30 Conical Fermenter has a smooth interior with no additions, such as cooling coils or sampling valves. This makes cleaning easy and minimises the risk of infection.
  • Golden Angle Conical: The conical shape of the fermenter is typical for professional breweries. Our conical has been designed with the 'Golden Angle' of 60º. This is the optimum angle for yeast and sediment to drop down to the bottom of the cone without it getting stuck to the sides. It also makes it easier to mix during fermentation due to the path of conventional currents that it enables to occur.
  • Dual Valve Tap: This all-in-one valve, makes the process of dumping yeast, transferring, and sampling easy. Sampling and transferring are done through an inlet above the sediment line, allowing for clear, sediment-free beer. Easily collect your yeast from below the sediment line with the same unique valve for re-cultivating and pitching. The innovative design of the valve allows for this dual functionality and means less cleaning for you.
  • GF30 Conical Fermenter Controller: With the built-in, wireless controller, you can connect it to the internet and the Grainfather App, add fermentation tracking devices and control/monitor fermentation from anywhere. Accurately set the temperature and even add a temperature schedule/profile. You can set up to four profiles, with five individual stages. Plus, it’s even splashproof - making it easy to clean and wash down your fermenter.
  • Support: Every GF30 Conical Fermenter comes with a 3-year warranty and is fully supported by a fantastic, global customer service team.

What's included?

  • Grainfather Glycol Chiller GC4
  • Propylene Glycol 3L
  • GF30 Conical Fermenter
  • Coat for GF30 Conical Fermenter
  • Built-in Controller with Wireless Connectivity
  • Silicone Bung & Airlock
  • Dual Valve Tap
  • Power Adapter and Wall Plug
  • Silicone transfer hose
  • 5 cm (2") Tri Clamp
  • 2 m (6.5 ft) M12 3-Pin Power Cord

Specifications

• 304 Stainless Steel Body (polished inner and brushed outer)

• 30L capacity (volume markings on the inner body up to 25L)

• 20 - 30W, 12V heating power

• 3.8 cm (1.5") ferrule on the lid (for pressure transfer attachments)

• 5 cm (2") ferrule on the bottom of the cone

• Dual Valve Tap with 110 mm (4.3”) inlet

• Dimensions of Conical Fermenter:

Diameter with handles: 360 mm

Height (without airlock): 910 mm

Height with bubbler airlock: 1090 mm

• Dimensions of Fermenter Carton

  Approx: 390 mm W x 390 mm L x 970 mm H

  Approx Weight; 12Kg


Polite Notice

  • Only available for Mainland UK shipping.
  • Due to the volumetric size of the product we ship safely on a pallet.
  • Expect delivery in 1-3 days from the time of palletisation, not the order placement.
  • Please ensure that there is someone at the shipping address to receive your order.
  • For further clarification do not hesitate to contact us at 01752 660382 or sales@hopshopuk.cok

*A 2.5% discount on this item if you are able to collect it directly from our store - please call before travelling.
